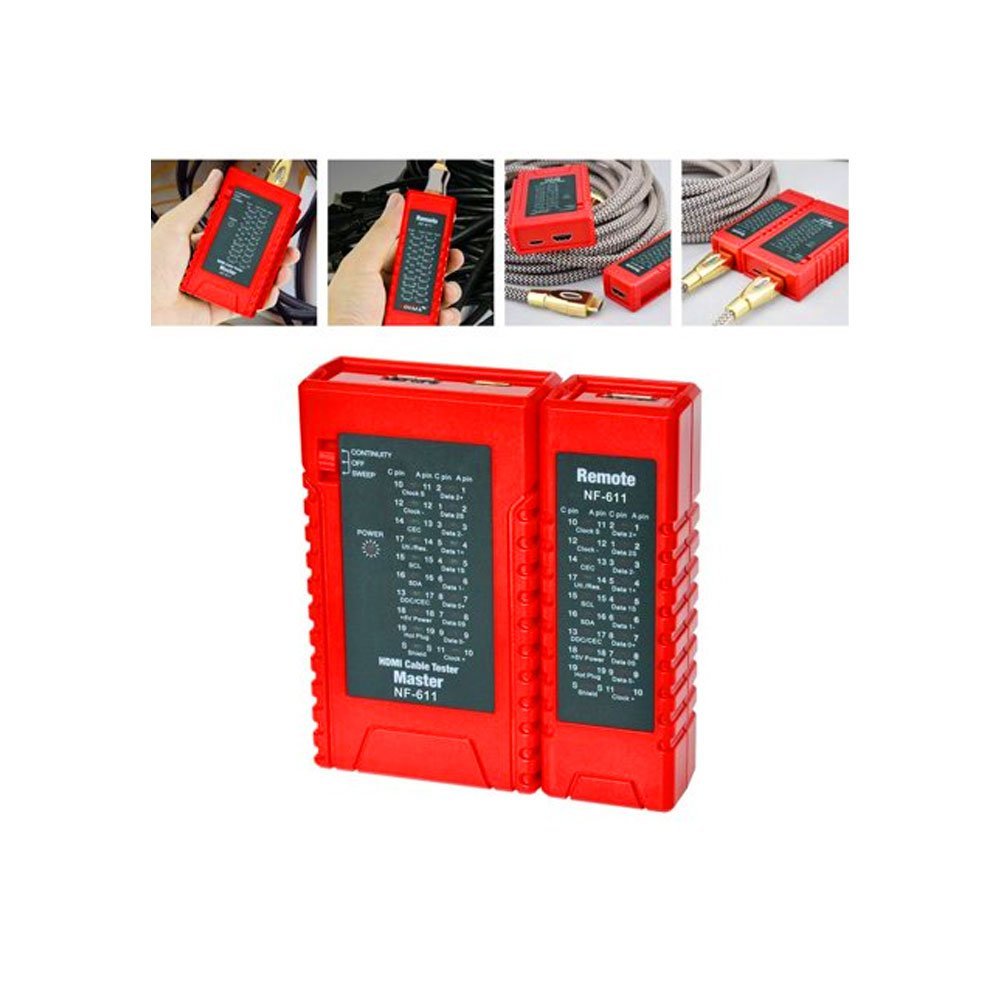

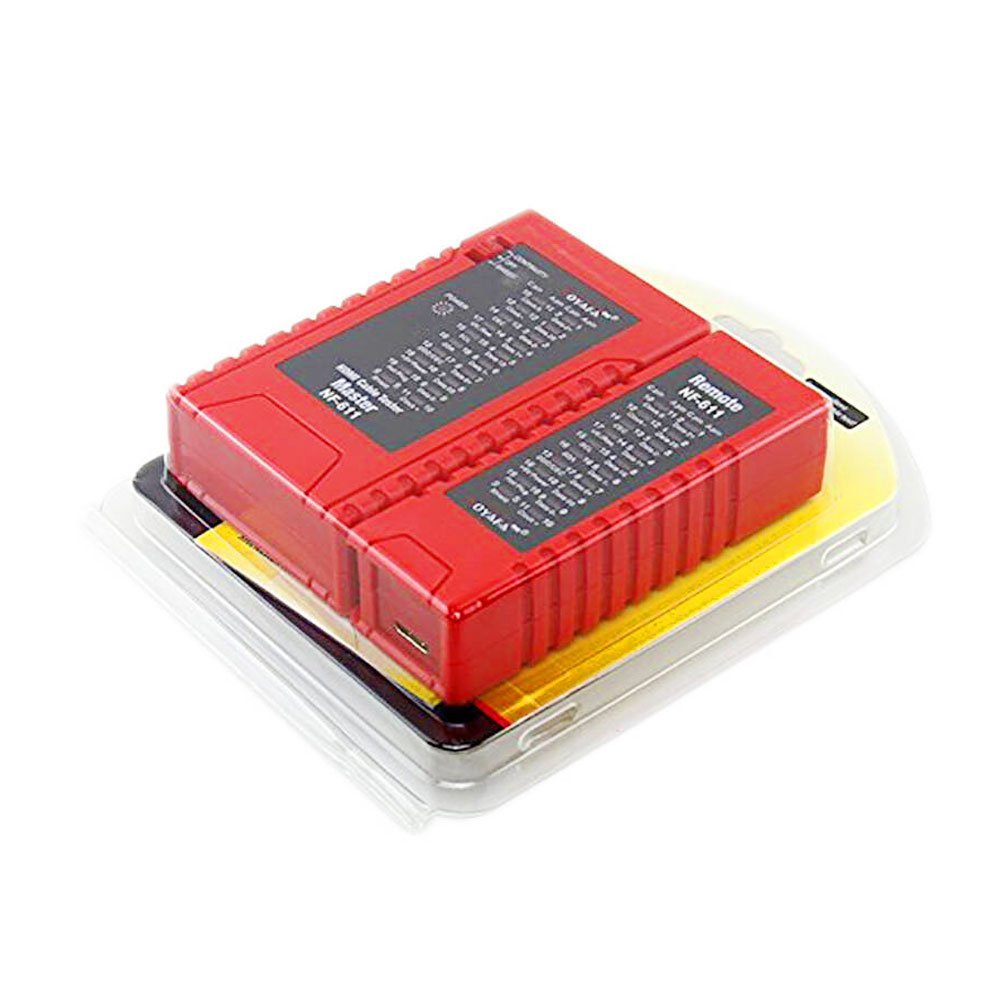

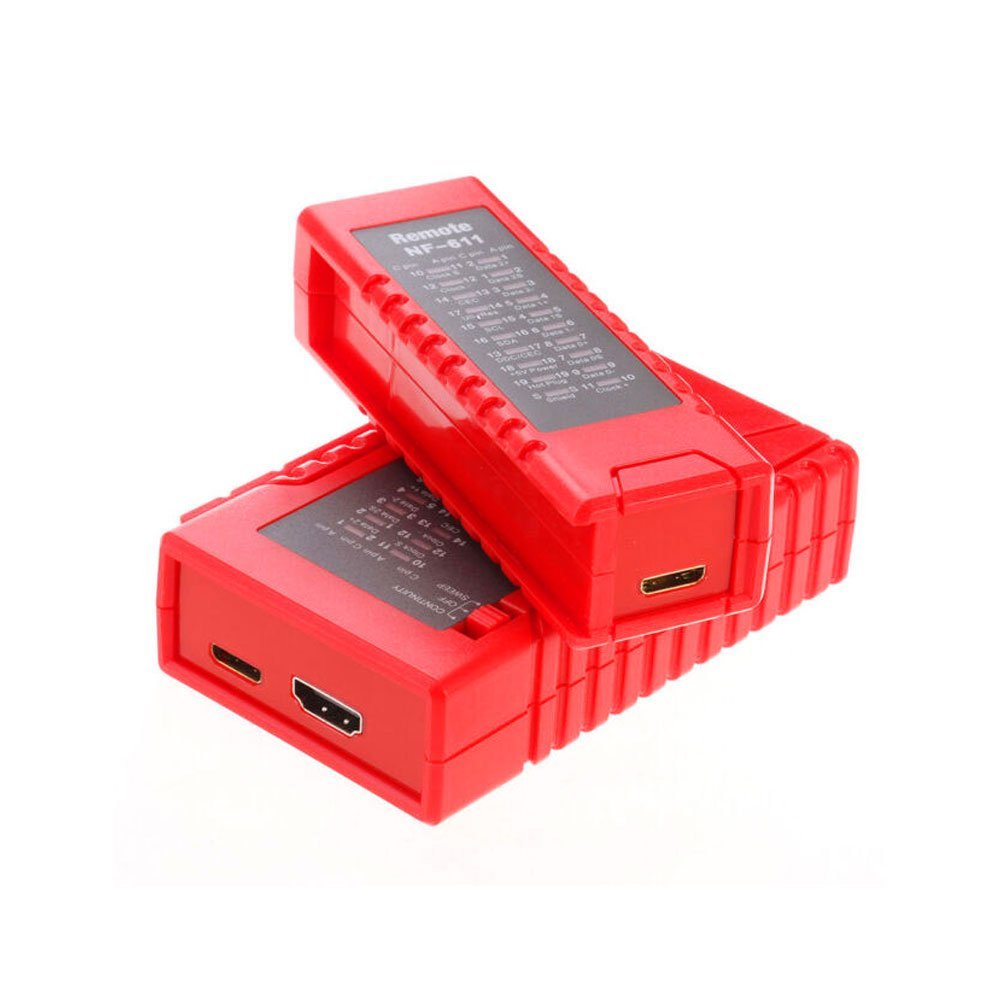

MeterTo HDMI Cable Tester NF-611 & NF-622
- Fast and accurate verification with type A – A, A – C,C-A and C – C connectors.
- Check disorder, short, open and cross status of HDMI passive cables
- Mapping continuity and proper configuration.
- 19 pins and grounded connection and 4 status led.
- Capable of checking wire map only with master unit.
- Adjustable test modes :Fast/slow scan/manual test for step by step.
- Design with loop back function.
Cables versions support HDMI “Passive” cables with type A & C connectors conforming to 1.0,1.1,1.2,1..2a,1.3,1.3a,1.3b,1.4,1.4a,Category 1 and category 2 HDMI cables support test 19 pin to pin wiremap and shielding detection Test interface of master unit HDMI ( type A) x 2, Mini HDMI (type A ) x1 Test mode: fast / slow scan / step by step Status Display 19 led and shield led on both master and remote unit 4 led (pass, open, short, cross) Beeper indication Yes Low battery indication 6.0V Power source DC 9V (NEAD 1604/ 6F22) x1 (not included) Environment Operating:0℃ to 40 ℃< 80% RH Storage:-10℃ to 50℃ <70%RH Dimensions Master unit: 103x66x27mm Remote unit: 103x35x27mm
